| Item | Horizontal Band Saw |
|---|---|
| Amps | 14/7A |
| Amps AC | 14/7 |
| Blade Thickness | 0.032″ |
| Blade Wheels Dia. | 11.5″ |
| Cutting Angle | 45 Degrees |
| Cutting Capacity Rectangle | 7″ x 8″ |
| Cutting Capacity Round | 7″ |
| Cutting Capacity Square | 7″ |
| Frequency | 60 Hz |
| HP | 1 hp |
| Hz | 60 |
| Material | Metal |
| Max. Blade Length | 93″ |
| Max. Blade Width | 3/4″ |
|---|---|
| Max. Thickness of Cut | 7″ |
| Min. Blade Width | 3/4″ |
| Miter Capacity | 45 Degrees |
| Operation | Manual |
| Overall Depth | 18″ |
| Overall Height | 41″ |
| Overall Width | 48″ |
| Phase | 1 |
| RPM | 1725 |
| SFPM Range | 150 to 255 SFPM |
| Speeds | 125, 215, 270 SFPM |
| Type | Horizontal |
| Voltage | 120/240V AC |

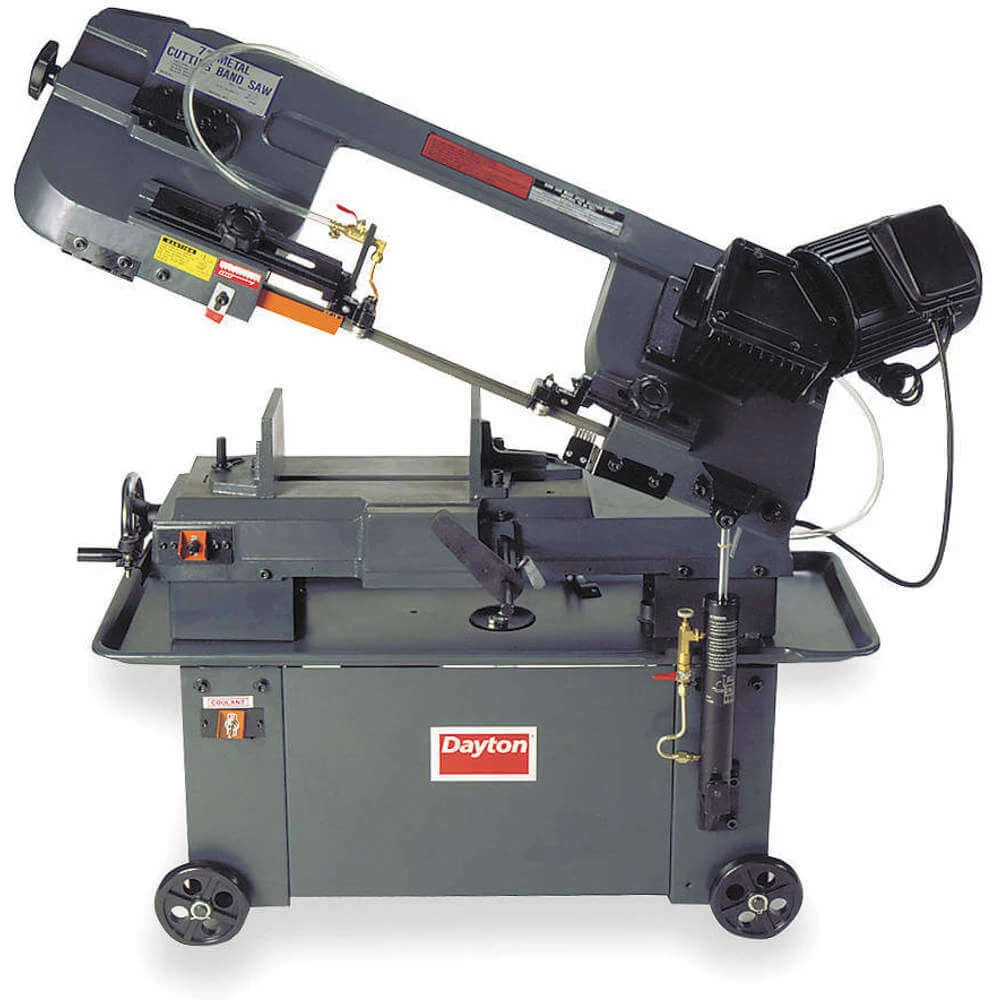

Dayton horizontal band saw is utilised for precision cutting of materials, such as metal, plastic and wood into desired shapes and sizes. This saw is suitable for metalworking shops, fabrication and manufacturing units. The wet feature indicates it uses a coolant / lubrication system to enhance cutting efficiency and blade longevity. This band saw has a 2.5-gallon capacity for coolant and has an auto shut-off mechanism at the end of each cut. This machine includes a single-phase coolant pump with a hose. It utilises a direct drive gearbox for power transmission. This saw has heavy-duty casters for easy mobility and features hydraulic feed control for precise cutting. It comes with a nozzle and flow control valve for effective coolant distribution.
| Height (cm) | 106.68 |
|---|---|
| Length (cm) | 129.54 |
| Width (cm) | 45.72 |
| HS Code | 8465910064 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 146.06 |
